Mechanicville Condo Millwork and Stairwell
Architectural Details · Featured Project

Mechanicville Condo

Oak stairwell restoration, concealed display-cabinet lighting, rendering studies, and finish details inside a former Masonic Temple building.

Mechanicville, NY
Project Summary

Make the repairs read as original, not as patches.

This top-floor apartment needed several specific pieces of work: kitchen installation, display-cabinet lighting, a bedroom millwork concept, fireplace tile, and a more intensive stairwell restoration.

The stairwell carried the strongest craft problem. Missing profiles, irregular gaps, a custom stringer, and a reddish oak stain all had to be matched closely enough that the new work did not read as a later patch.

Stairwell

Make new oak disappear into the existing stairwell.

The stairwell had unfinished openings, missing trim, gaps, and existing reddish-stained oak that could not be matched by guessing. The repair needed custom profile work and a stain approach that respected what was already there.

New oak trim was fabricated to match the existing profiles, stain samples were tested before committing, and a custom stringer was scribed to the irregular stair and wall conditions.

Notes

Problem
Original oak profiles were missing or incomplete, and the stairwell had irregular existing conditions.
Move
Run matching profiles, test stain recipes, and scribe new parts to the actual stairwell.
Result
New work that extends the stairwell language instead of calling attention to the repair.

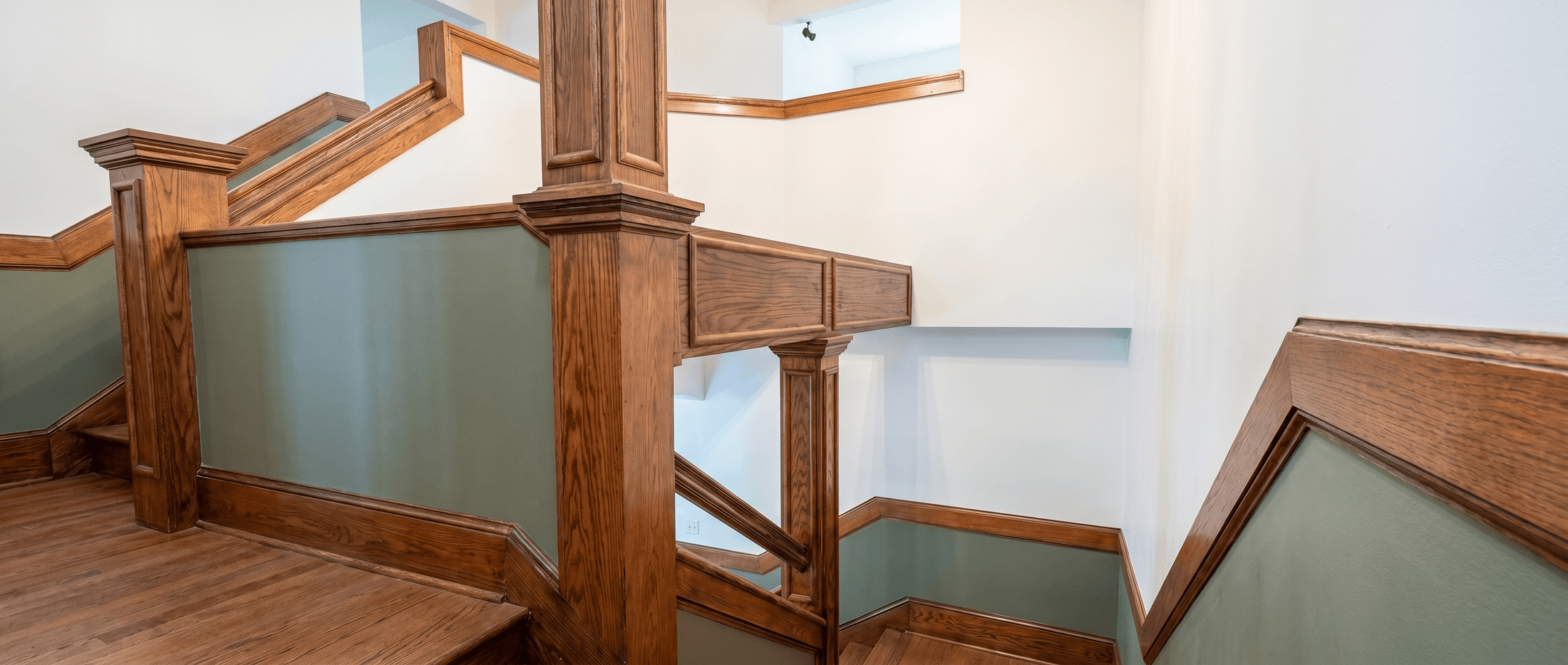

01Finished oak stairwell landing and paneled guard wall.

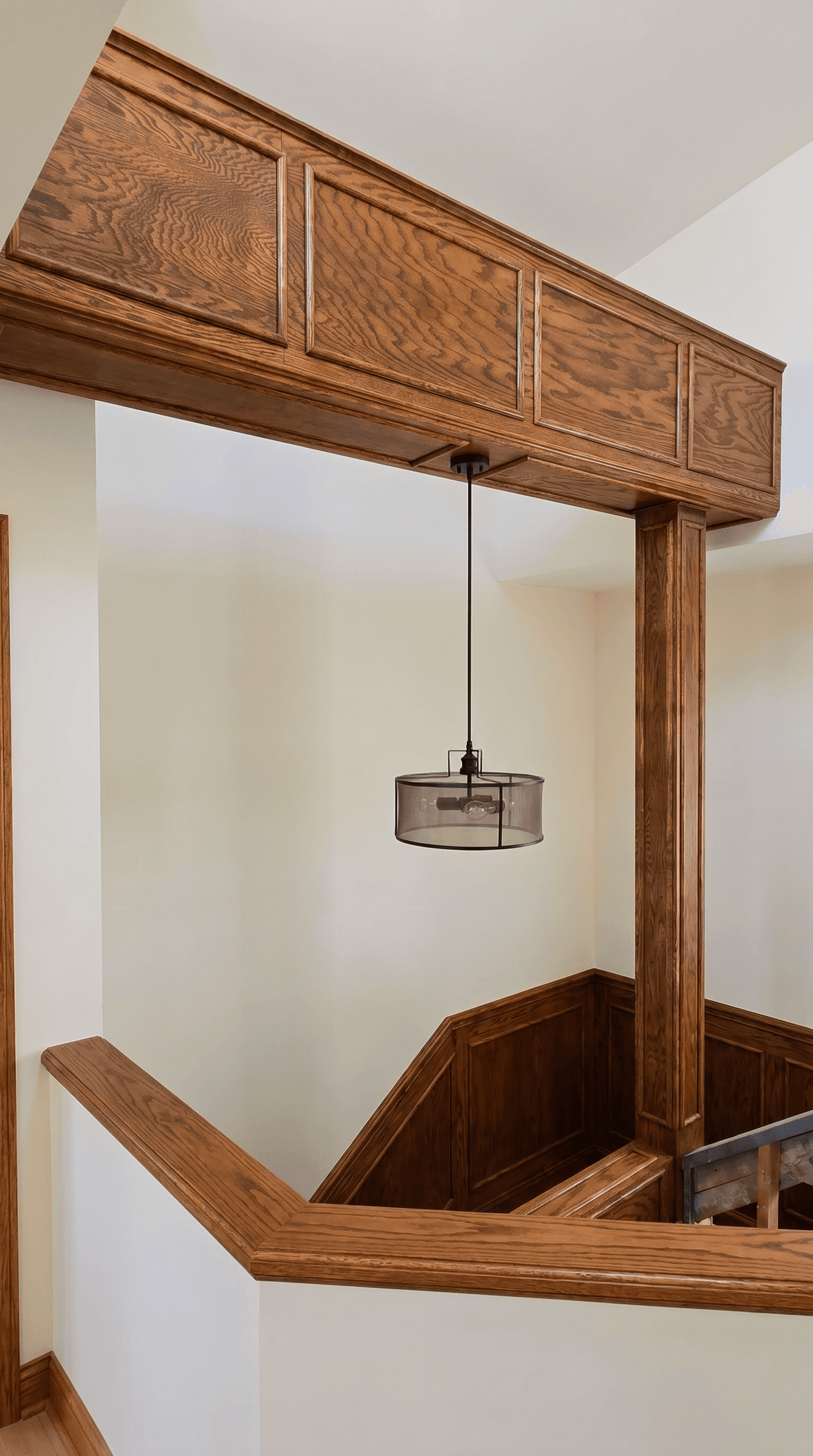

02Stained oak surround and stairwell trim.
03Landing view tying posts, rail, trim, and guard wall together.

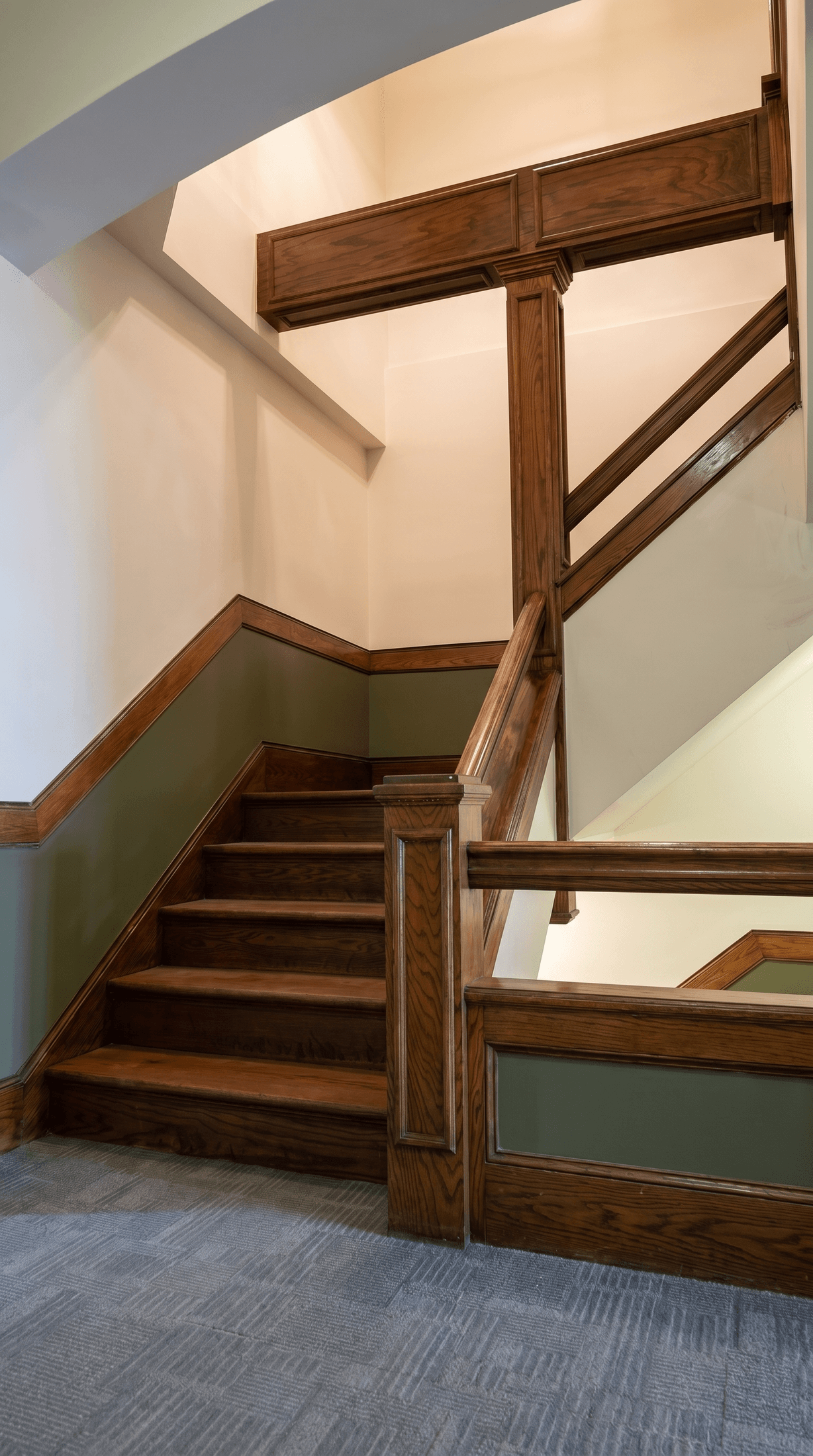

04Finished stair run with stained oak trim.

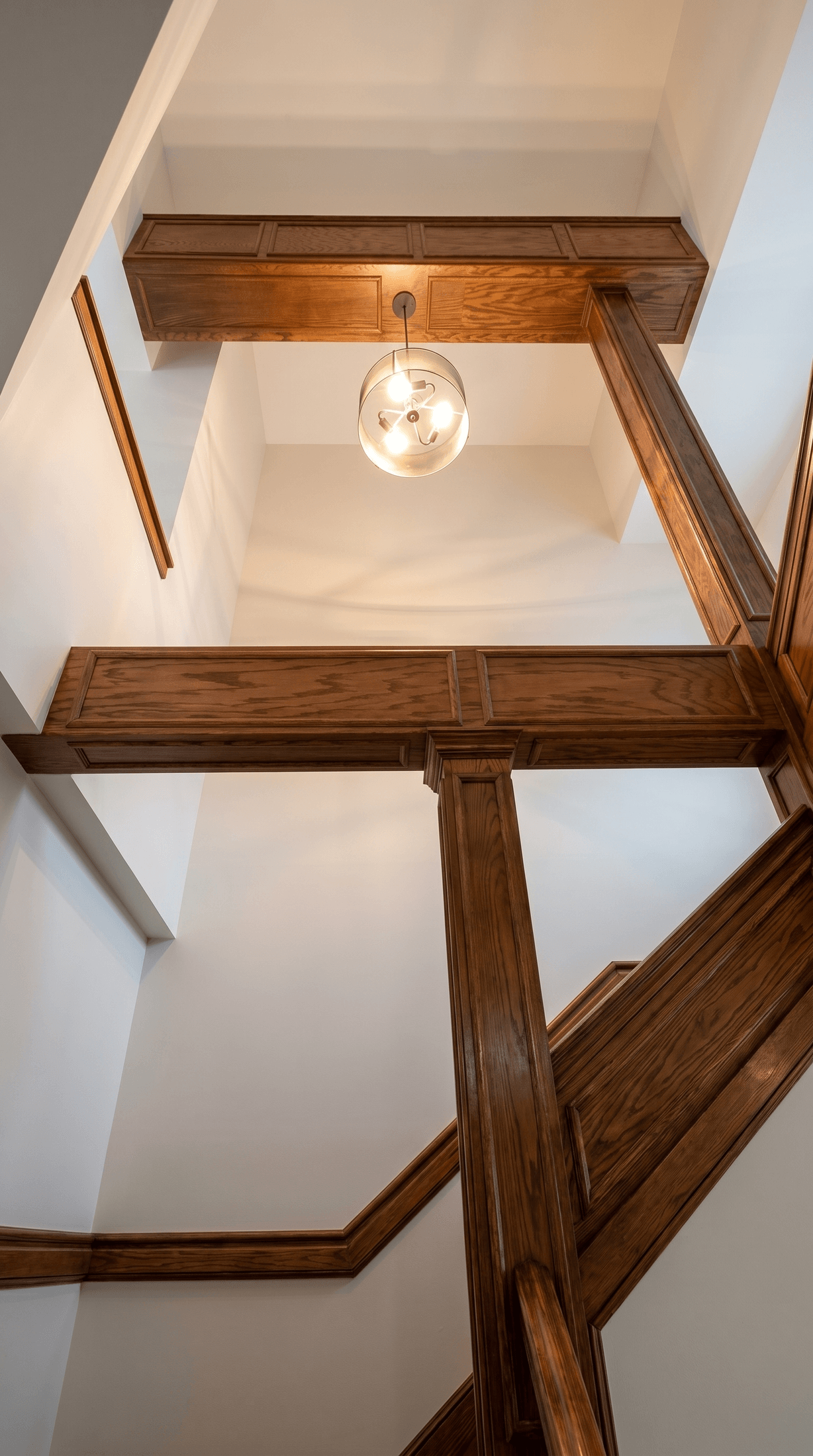

05Upper stairwell view with paneling, beam, and light.
Planning

Use drawings and finish studies before committing to the room.

The project included visualization work as well as installation. The stairwell rendering helped evaluate the stained-wood language before the final work, while the bedroom color study tested how a paneled millwork wall could conceal a closet door.

Those planning pieces kept the client-facing decisions separate from the fabrication decisions that had to happen in the shop and on site.

Notes

Problem
The client needed to see direction before finish decisions became permanent.
Move
Use rendering and color studies to test stairwell and bedroom millwork options.
Result
A clearer path from design intent to installed finish work.

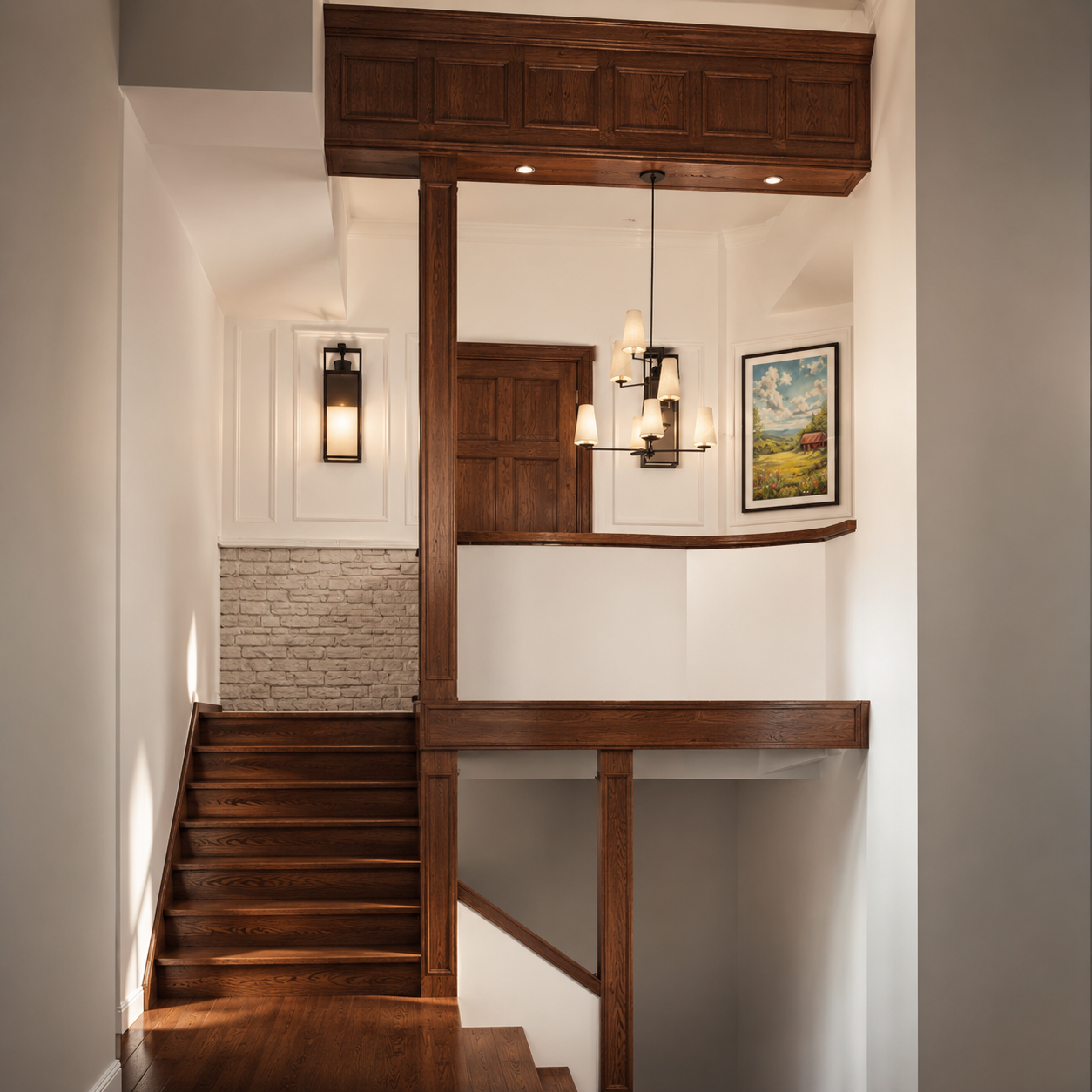

01Stairwell rendering used to study the stained-wood direction.

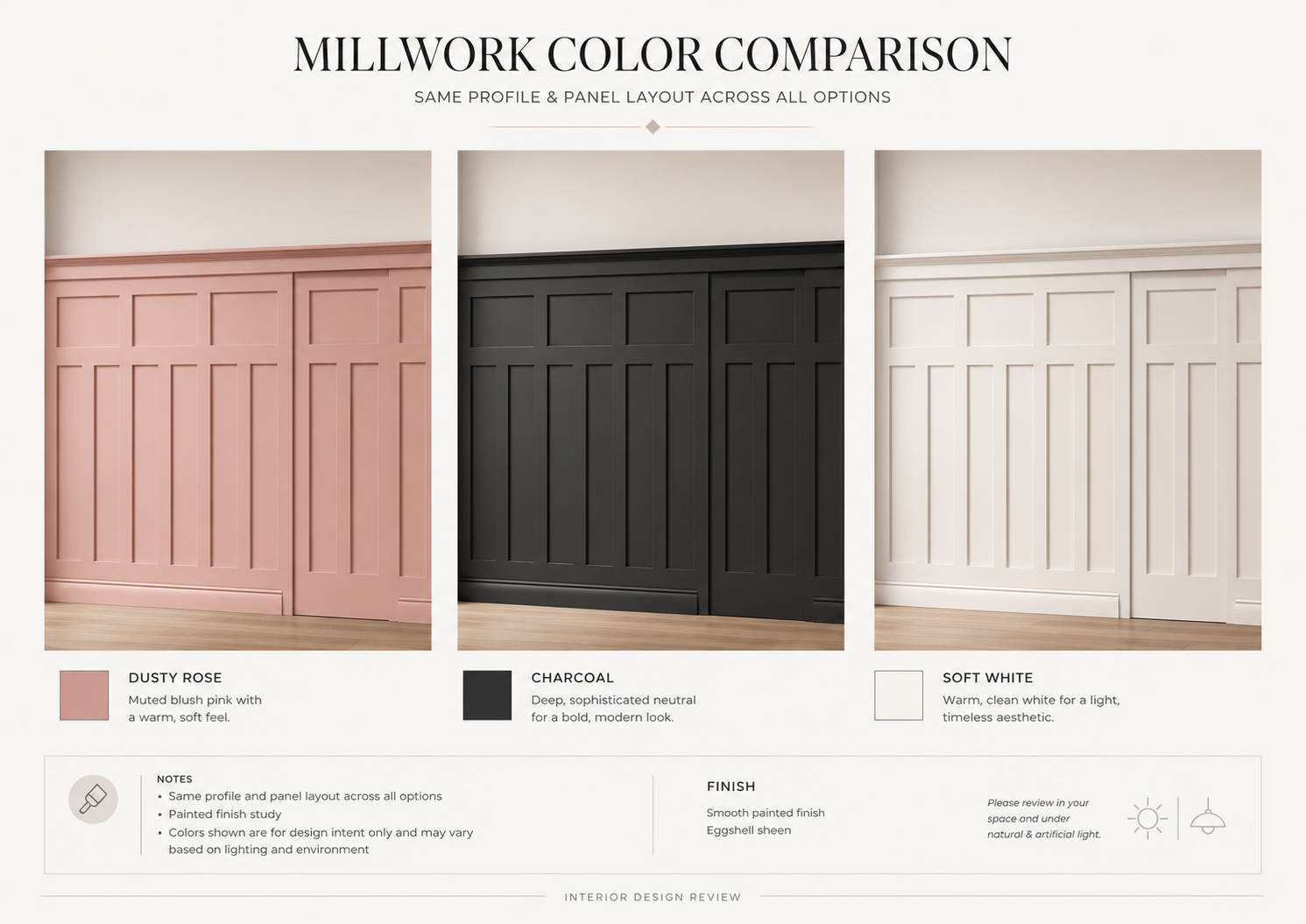

02Color study for a paneled bedroom millwork wall.
Apartment Details

Keep the supporting work precise without overstating the scope.

The apartment also included kitchen installation work, concealed display-cabinet lighting, range hood coordination, backsplash work, and fireplace tile. Those scopes matter, but they support the stairwell story rather than replacing it.

In the kitchen, LED placement was tested so the strips could light the display cabinets without becoming the visible feature. In the living room, the fireplace tile gives the insert a finished surround.

Notes

Problem
Secondary scopes still needed clean integration and hidden technical decisions.
Move
Place LED strips where sightlines would not expose them, and keep fireplace tile work controlled.
Result
Supporting details that make the apartment feel finished without claiming a full renovation.

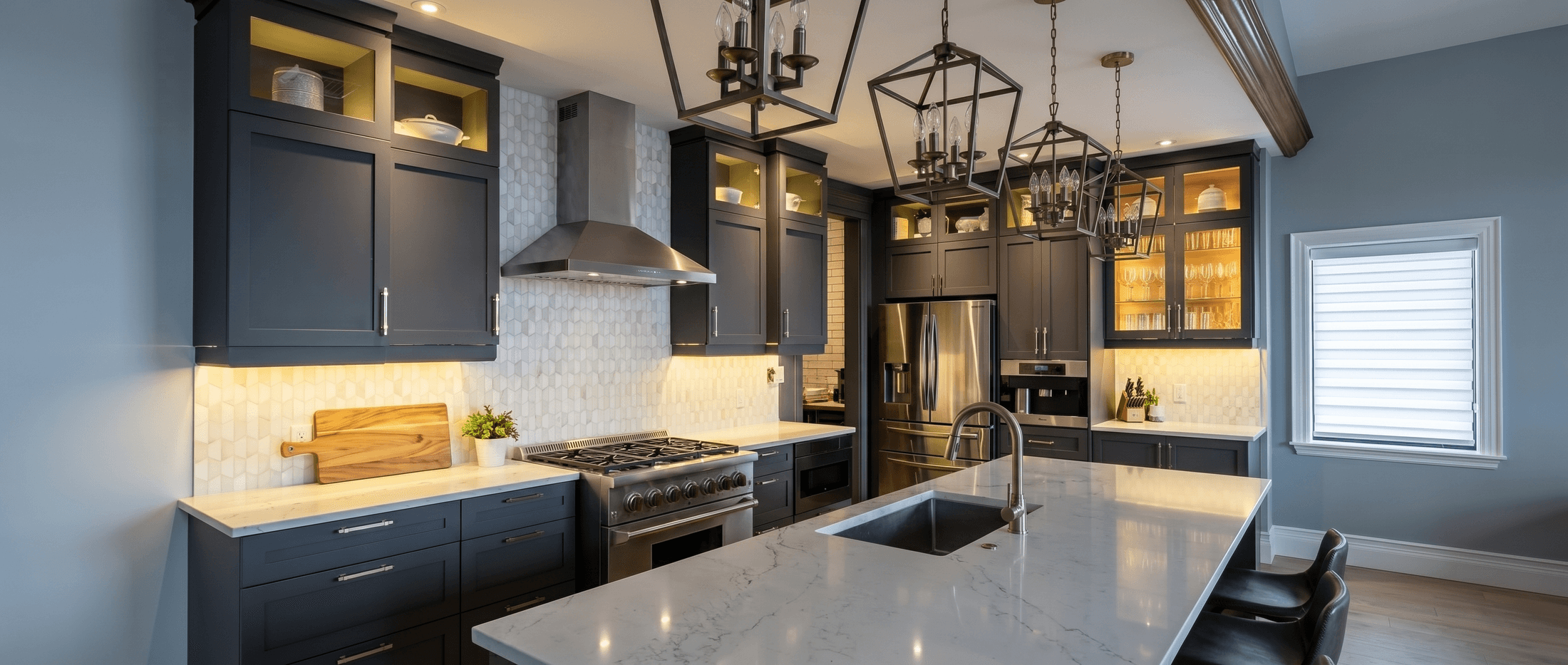

01Kitchen wall with glass-front cabinets, range hood, and concealed lighting.

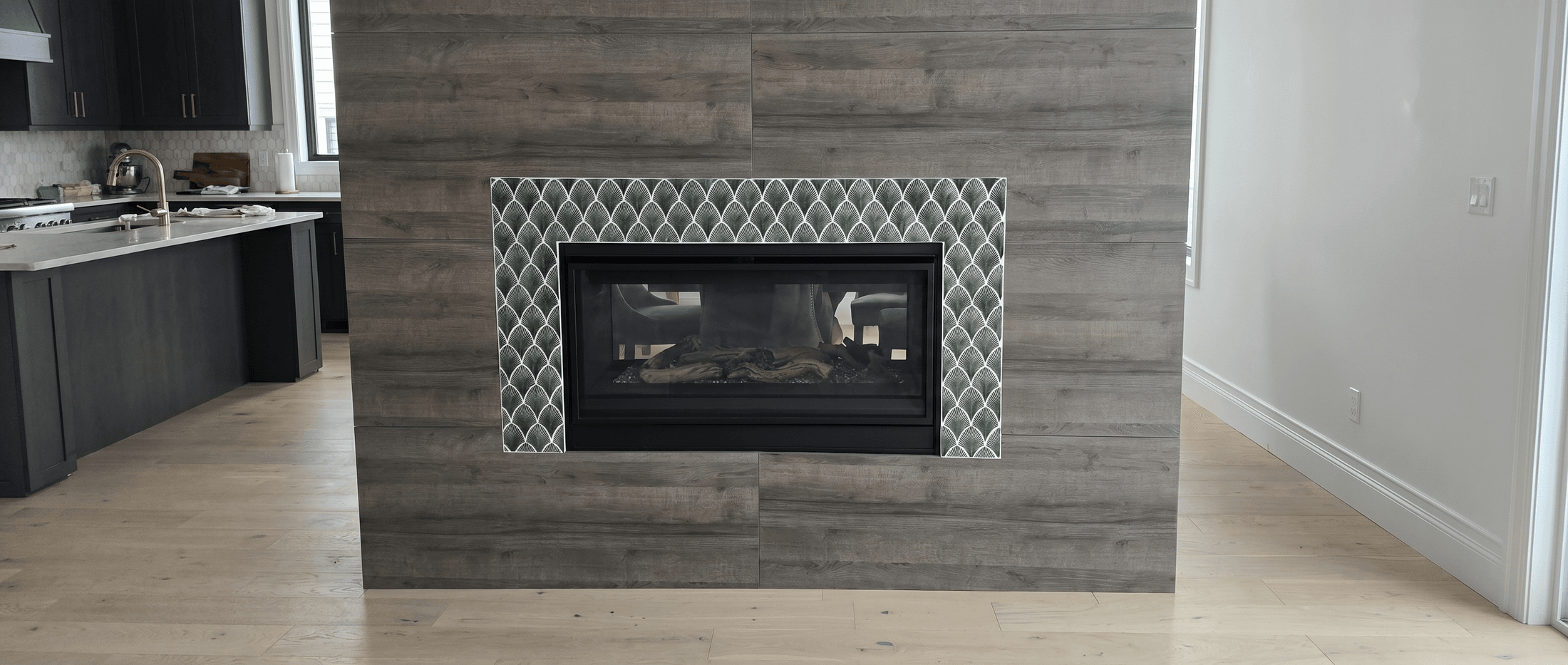

02Patterned tile surround at the fireplace insert.
Result

Restoration work that depends on matching what is already there.

The value in the Mechanicville project is not only the visible oak. It is the profile matching, stain testing, scribing, and concealed lighting decisions that let the finished work sit quietly in a complicated existing interior.

That is a different skill than installing new parts into a blank room.
